Quick answer: If your JURA E8 draws milk but makes thin foam, start with refrigerated milk, a fully connected milk pipe and the daily milk-system cleaning cycle. If milk sprays from the outlet, stop the test, let the frother cool, then remove, rinse and reassemble its removable parts. If there is little or no milk, water or steam and the pump is unusually quiet, JURA’s E8 (NAC) manual points to a possibly blocked frother connector. Do not buy a pump based on weak foam alone.
The name E8 spans several generations. This guide uses the U.S. E8 (NAC) instructions for exact menu and part references. Older E8s can have a different frother and screen sequence, so check the type or product number on your own machine before ordering parts or following a control-panel sequence. The cover is a generic editorial illustration, not a photo of a JURA E8.
Which symptom do you actually have?
| Observation | Useful first check | Why it matters |
|---|---|---|
| Milk reaches the cup but foam is thin | Milk temperature, tube seating, daily cleaning | The milk path is open; frothing quality or residue is the immediate question. |
| Milk spits or sprays at the frother | Stop, cool, dismantle and rinse the removable frother | JURA identifies a dirty frother as a cause of insufficient foam and spraying. |
| Little or no liquid or steam; pump very quiet | Consult the exact model manual’s connector procedure | The E8 (NAC) manual identifies a possible connector blockage in this combination. |
| Display says “Clean the milk system” | Run the milk-system program with the specified cleaner | That prompt concerns the milk circuit, not the separate coffee-tablet cleaning cycle. |
Before cleaning: milk, pipe and fittings
- Use cold milk. JURA specifies 39–46°F (4–8°C) as the desired milk temperature for frothing on the E8 (NAC). Milk left on the counter may produce a different result even with a clean machine. Keep the milk container refrigerated between uses according to food-safety guidance.
- Trace the milk pipe. Make sure one end is firmly attached to the machine’s milk inlet and the other reaches the milk in the container or cooler. Look for an obvious loose connector, kink, split or dried residue. A tube that admits air may cause intermittent milk pickup; this is a diagnostic inference, not a confirmed internal fault.
- Check the removable spout. It should be firmly seated and clear of visible milk deposits. Let the machine cool before touching it. If a fitting feels damaged or will not stay in place, stop; hot liquid or steam could spray.
Try one milk portion after these external checks. If milk is pulled up but the foam remains weak, clean the milk path. If it does not pull milk at all, watch whether the machine also fails to deliver steam or water from the frother. That observation helps distinguish a pickup problem from the connector branch below.
Run the milk-system cleaning program
On the E8 (NAC), JURA calls for milk-system cleaning daily whenever milk has been prepared. The rinse after a milk drink is a separate operation; it does not replace the cleaner program. Use the supplied milk-system cleaning container and JURA milk system cleaner, following the dose and on-screen prompts for your model. Do not pour milk cleaner into the water tank.
- Remove the milk pipe from the milk container or cooler.
- Place one dosing unit of JURA milk system cleaner into the designated cleaning container.
- Position the container under the hot-water nozzle and fine foam frother; connect the milk pipe to it using the required fitting.
- Open the maintenance area in the E8 (NAC) Cockpit, choose Clean the milk system, then follow Start and Next. Let the program finish automatically.
The exact buttons and cleaner format can differ on earlier E8 versions. Follow the displayed directions and the manual associated with the label on your machine. Handle cleaning chemical as directed on its packaging; keep it away from children and eyes.
Still weak or spraying? Rinse the removable frother
JURA’s troubleshooting table identifies a dirty fine foam frother when foam is insufficient or milk sprays. After switching the machine off and letting hot parts cool:
- Disconnect and thoroughly rinse the milk pipe under running water.
- Remove the fine foam frother as shown in the manual for your E8 generation. Dismantle only the parts that the owner manual identifies as removable.
- Rinse the pieces under running water. For severe dried-on milk residue, the E8 (NAC) manual specifies soaking the removed pieces in 8.5 oz (250 ml) water plus one dosing unit of JURA milk system cleaner, followed by thorough rinsing.
- Reassemble the frother firmly and refit it on the machine. If a piece is missing, cracked or loose, do not run a milk cycle.
- Reconnect cold milk and try one portion. Compare the milk pickup and outlet behavior with the original symptom.
Do not push needles into precision openings or force a stuck part. If the frother will not come apart as shown for your variant, use its own manual or JURA support instead of an E8 (NAC) diagram.
If almost nothing leaves the frother
A different branch applies when little or no water or steam exits the fine foam frother and the pump is very quiet. JURA says the black connector may be blocked by milk residue or scale fragments released during descaling. Its E8 (NAC) manual gives an owner procedure: remove the frother, use the hexagonal opening of the supplied ground-coffee measuring spoon to unscrew the black connector, clean it thoroughly, and tighten it back by hand. Follow the illustrated instructions for your exact model if you are comfortable doing this after it cools; otherwise ask JURA to do it. Do not remove outer panels or work near live electrical parts.
If water and steam output remain absent after the manual’s checks, or the machine reports another error, contact JURA support. Record the exact display message and whether coffee and hot water from their other outlets work. Those observations help isolate the service issue without guessing at a pump or heater.
Parts and upkeep
For the E8 (NAC), the manual identifies the HP3 milk pipe/connector and CX3 interchangeable milk spout, each with an approximate three-month replacement interval. That is a maintenance interval, not proof that a weak-foam complaint requires both parts. Match the exact E8 product code and installed assembly before buying; older generations differ. Use the JURA E8 model page for related problems and the E8 coffee cleaning-tablet guide for the separate brew-circuit program. If you see a numbered error, check the Error 8 guide only when that error actually appears.
FAQ
Why does the E8 rinse the milk system but still make poor foam?
A rinse is not the daily cleaner cycle. Run the milk-system cleaning program, and if foam is still insufficient or the outlet sprays, dismantle and rinse the removable frother as directed for your E8 version.
Does weak foam mean the pump has failed?
No. First confirm chilled milk, a secure milk pipe and a clean frother. JURA’s manual lists a dirty frother for insufficient foam; it gives a separate connector check for little output with a very quiet pump.
Can I use the coffee cleaning tablet in the milk system?
No. The E8’s coffee cleaning program and milk-system cleaning program are different. Use the cleaner and container specified for the milk system.
Are all JURA E8 milk pipes and spouts interchangeable?
Do not assume so. The HP3 and CX3 identifiers cited here belong to the E8 (NAC) documentation. Check your machine’s model code and its manual before ordering replacements.
Sources and scope

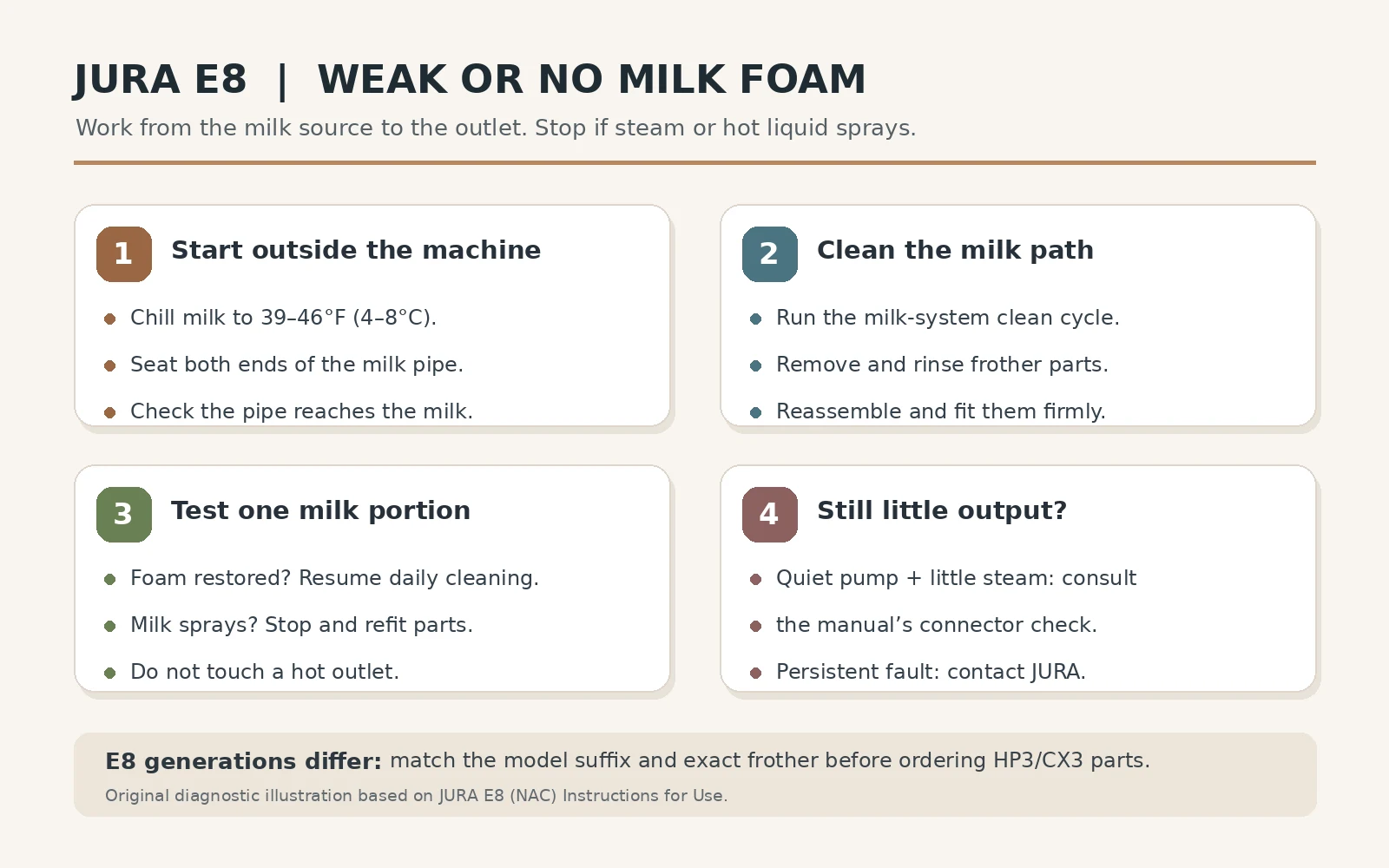

Checked October 9, 2026 against JURA’s E8 (NAC) Instructions for Use (connecting milk, maintenance and troubleshooting) and the E8 (NAC) product/support page. The earlier E8 (NAA) manual documents similar hygiene checks but can differ in controls and assembly. The diagnostic chart is our original illustration, not a manufacturer exploded view.
